24/32 Station Closed CNC Hydraulic Punching Machine CNC Turret Punch Press

Name: 2432 Station Closed CNC Hydraulic Punching Machine CNC Turret Punch Press
Brand: Qingdao AMD
Price: 1 USD

Quality 24/32 Station Closed CNC Hydraulic Punching Machine CNC Turret Punch Press wholesale

Brand Name : Qingdao AMD

Model Number : AMD-357

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 35 workdays

Packaging Details : Stretch film

Condition : New

type : hydraulic punching machine

CNC or not : CNC

Warranty : One year

Control axis : 3-4

Power Source : Hydraulic

Punching frequency : 400-600 hpm

Contact Now

AMD-357 Hydraulic CNC Turret Punching Machine for Sheet Metal Hole Punching

high-efficient turret punch presses are produced as a closed type rigit Steel construction into a rigit structure, the structure is exquisite, the reliability is high, and the use is convenient. Under the premise of retaining the main structure of the original turret punching machine, the visual inspection technology is used to conveniently detect the wear condition of the mold, and the mold can be quickly changed after the test, and has a pole. High degree of automation. turret punch presses has 2 models with 24 station/700 stroke and with 32 station/900 stroke which helps to finish all the work at onces even on very complicated sheet products. So turret punch presses provides a complete solution with optimum cost.

• Platform type on bridge side or Portable CNC control panel
• CNC control outputs/inputs for vacum table & filtering unit
• High vacuming capability with lower energy consaption
• Independent cutting table system

• Siemens AC servo motors on all axis
• +/- 0.01 mm positioning accuracy
• +/- 35m/min positioning speed

The main pneumatic parts are imported name ones to make the mechanism more reliable.

The fully bushed high precision turret improves efficiently the accuracy and longevity of the turret, and the 24 or 32 stations is
optional.

The advanced working and heat treatment technology is adopted to the tools for the longevity of the tools.

Hydraulic press machine main specification:

Specification	Unit	AMD-357
Transmission mode	/	Hydraulic	Mechanical
Punch force	KN	300
Power rating	KW	20	11
Processing sheet size	mm	2500*1250	2500*1250
Processing sheet thickness	mm	≤6	≤4
Max. Punch diameter	mm	Ø88.9	Ø88.9
Sheet moving speed	m/min	40	40
Punching frequency	hpm	600	300
Hole accuracy	mm	±0.1	±0.1
Number of stations in turret	No.	16/24/32	16/24/32
Turret speed	rpm	30	30
Controlled axis	No.	3/4	3/4
Rotating location	No.	0/2	0/2
Air pressure	Mpa	≥0.8	≥0.8
Outline Dimension	mm	449053002110	449053002110
Machine Weight	T	11	10

Siemens CNC special system

With servo motor, faster speed and higher stabilityEquipped with secondary positioning system to realize processing without dead angle

Ductile iron turret station
With the features of automatic lubrication and minimal wearUse casting integrated type thick turret mold disc

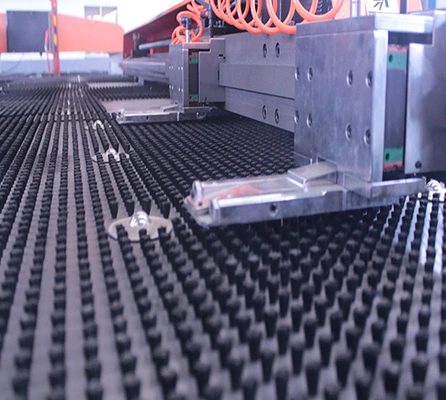

Worktable
We adopt brush and universal ball mixer work table,can not only facilitate processing,but also can protect the plate very well.


24/32 Station Closed CNC Hydraulic Punching Machine CNC Turret Punch Press

Trade Information:

MOQ: 1set.

Settlement Currency: USD, RMB, EUR.

Trade mode: FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey.

Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.

Delivery time: Within 15-40 days according to different type hydraulic press machine.

After-sale service:
1. Installation and commissioning issue of hydraulic press machine: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet. Customer need prepare installation machinery and tools.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
